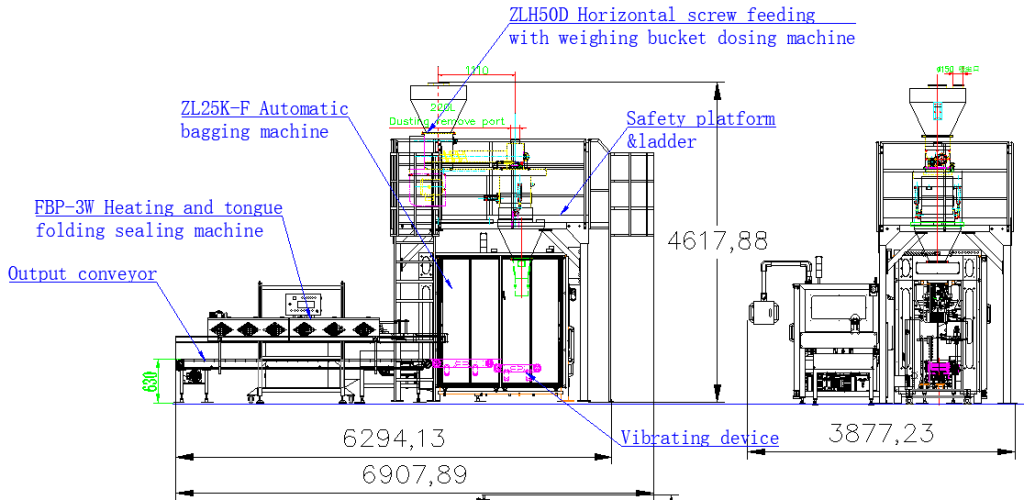

1,General principles of production line
This line is special design for automatic weighing the bulk powder filling bagging in to 15-25kg karft paper bag then sealing the bag .According the client requirement we also need offer the automatic weight check ,metal detector and palletizing .The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.
Automatic packaging machine can realize automatic measurement, automatic bag loading, automatic filling, automatic heat sealing, sewing and wrapping, without manual operation. Save human resources and reduce long-term cost investment. It can also complete the whole production line with other supporting equipment. Mainly used in various powder material like chemical powder ,Pesticide powder,Milk powder Protein powder etc .
મુખ્ય લક્ષણો
Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required; Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;
Two micro switches are installed at the opening position of the bag clamping device, which are used to detect whether the bag mouth is fully clamped and whether the bag opening is fully opened. In order to ensure that the packaging machine does not misjudge, does not spill material to the ground, improves the use efficiency of the packaging machine and on-site working environment;
સોલેનોઇડ વાલ્વ અને અન્ય વાયુયુક્ત ઘટકો સીલબંધ ડિઝાઇન છે, ખુલ્લી ઇન્સ્ટોલેશન નથી, ધૂળના વાતાવરણમાં ઉપયોગ કરી શકાય છે, જેથી ઉપકરણ લાંબુ આયુષ્ય ધરાવે છે તેની ખાતરી કરી શકાય.
આ યુનિટમાં બેગ સ્ટોરેજ બિન, બેગ લેવા અને સૉર્ટ કરવા માટેનું ઉપકરણ, બેગ લોડિંગ રોબોટ, બેગ ક્લેમ્પિંગ અને અનલોડિંગ ડિવાઇસ, બેગ પુશિંગ ડિવાઇસ, બેગ માઉથ ગાઇડ ડિવાઇસ, વેક્યુમ સિસ્ટમ અને કંટ્રોલ સિસ્ટમનો સમાવેશ થાય છે.
વિશેષતા
૧). પેકેજિંગ બેગ માટે વ્યાપક અનુકૂલનક્ષમતા. પેકેજિંગ મશીન બેગ ચૂંટવાની પદ્ધતિ અપનાવે છે, એટલે કે, બેગને બેગ તૈયારી વેરહાઉસમાંથી લેવામાં આવે છે, બેગને કેન્દ્રમાં અને સ્થિત કરવામાં આવે છે, બેગ આગળ મોકલવામાં આવે છે, બેગનું મોં સ્થિત કરવામાં આવે છે, બેગ પહેલાથી ખોલવામાં આવે છે, બેગ લોડિંગ મેનિપ્યુલેટર બેગનું મોં ખોલવા માટે બેગના મોંમાં છરી દાખલ કરે છે, અને પછી બેગ ઉપર લઈ જાય છે.
૨). બેગ લોડિંગ મેનિપ્યુલેટર આર્મ સર્વો મોટર દ્વારા ચલાવવામાં આવે છે. મોટાભાગના અન્ય ઉત્પાદકોના ન્યુમેટિક મેનિપ્યુલેટરની તુલનામાં, તેમાં ઝડપી ગતિ, સરળ બેગ લોડિંગ, કોઈ અસર નહીં અને લાંબી સેવા જીવનના ફાયદા છે.
૩). બેગ ક્લેમ્પિંગ અને અનલોડિંગ ડિવાઇસ બેગ ક્લેમ્પિંગ ઓપનિંગ પર બે પ્રોક્સિમિટી સ્વીચોથી સજ્જ છે, જેનો ઉપયોગ પેકેજિંગ બેગ ઓપનિંગ સંપૂર્ણપણે ક્લેમ્પ્ડ છે કે નહીં અને બેગ ઓપનિંગ સંપૂર્ણપણે ખુલ્લું છે કે નહીં તે શોધવા માટે થાય છે. આ ખાતરી કરે છે કે પેકેજિંગ મશીન ખોટું ન ગણે અને જમીન પર સામગ્રી ન ફેલાવે, જે પેકેજિંગ મશીનની ઉપયોગ કાર્યક્ષમતા અને સ્થળ પરના સંચાલન વાતાવરણમાં સુધારો કરે છે.
૪). પેકેજિંગ મશીનનું પેરામીટર સેટિંગ ટચ સ્ક્રીન પર પૂર્ણ થાય છે. માનવ-મશીન મૈત્રીપૂર્ણ ટચ સ્ક્રીન ઓપરેશન ઇન્ટરફેસ સમગ્ર મશીનની ઓપરેટિંગ સ્થિતિનું વ્યાપકપણે નિરીક્ષણ કરી શકે છે. ઓટોમેટિક ફોલ્ટ ડિસ્પ્લે અને પ્રોસેસિંગ પદ્ધતિ પ્રોમ્પ્ટ જાળવણી કર્મચારીઓને ટૂંકા સમયમાં ફોલ્ટનો સામનો કરવાની મંજૂરી આપે છે.
૫) સોલેનોઇડ વાલ્વ જેવા વાયુયુક્ત ઘટકો અને ટચ સ્ક્રીન અને વજનના સાધનો જેવા ચોકસાઇ ઉત્પાદનો બધા સીલબંધ અને એક્સપોઝર વિના સ્થાપિત થયેલ છે. તે ધૂળવાળા વાતાવરણમાં ઉપયોગ માટે યોગ્ય છે, જે ખાતરી કરે છે કે સાધનો લાંબા સમય સુધી ચાલે છે.
૬) પેકેજિંગ મશીનના બધા નિયંત્રણ ઘટકો અને એક્ઝિક્યુટિવ ઘટકો પ્રખ્યાત સ્થાનિક અને વિદેશી કંપનીઓ દ્વારા બનાવવામાં આવે છે, જે સાધનોના લાંબા ગાળાના, સ્થિર અને વિશ્વસનીય સંચાલનને સુનિશ્ચિત કરે છે.
૭) તેમાં ફોલ્ટ સ્વ-નિદાન કાર્ય અને શ્રાવ્ય અને દ્રશ્ય એલાર્મ સિસ્ટમ છે જે ઉદ્ભવતી કોઈપણ સમસ્યાઓને તાત્કાલિક ચેતવણી આપે છે.
8) સરળ અને અનુકૂળ ઓપરેટિંગ પ્લેટફોર્મ ઓપરેટરો માટે મશીનનું સંચાલન અને દેખરેખ રાખવાનું સરળ બનાવે છે.
તકનીકી પરિમાણો:
Packaging capacity :80-150bags/h
નિયંત્રણ પદ્ધતિ પ્રોગ્રામેબલ કંટ્રોલર (PLC)
સામગ્રી: સામગ્રીના સંપર્ક સપાટી માટે 304 સ્ટેનલેસ સ્ટીલ, ફ્રેમ સુરક્ષા માટે 304 સ્ટેનલેસ સ્ટીલ, વગેરે.
Set weighing value Net weight 15-25kg/package
હવાનો વપરાશ ~ 600NL/મિનિટ
પાવર સપ્લાય એસી 380V 50Hz ~ 15kw
