પરિચય:
This line is special design for automatic feeding the bulkgraunle product bagging in to 25kg and 50 kg plastic .According the client requirement we also need offer the automatic conveying and palletizing line .The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.
ZL25K-S Automatic double buckets gravity scale system
પીrinciple :
This scales are composed of mechanical components and sensors of the weighing system and a weighing control instrument system. Main machine frame and material contact parts made by sus304.Including vibrating feeding for accuracy feeding and Fast feeding by valve discharge .Install with Mettler Toledo weighing sensor .The whole process of feeding, weighing and unloading loose bags is automatically controlled and self-locking.
વિશેષતા:
1,Equipped with a standard cabinet,Main electric are China famous brand
2,All equipment is equipped with local operation columns, and the packaging machine is equipped with on-site local control display panels.
3,The weighing box adopts a frame structure, which is stable as a whole and has good sealing performance. The sensors are fixed on the frame of the weighing box. Three weighing pressure sensors per scale are fixed on the frame of the weighing box. It has an independent cover, which is dustproof and anti-collision.Equipped with two dust removal interfaces and breathing holes.
4,The fast discharge door of the weighing hopper adopts a 45º tapered half-open material bottom door.The discharging speed is very fast, and the vibration generated by the cylinder will not affect the weighing accuracy.
5,All mechanical transmissions use dust-proof bearing transmission, and there is no sliding friction between metals.
6,All doors on the scale body are well sealed and there is no dust leakage.
7,All bolts and nuts inside the weighing box are protected by steel wires and cotter pins. (Use a lock nut or drill a hole at the end of the screw, and then thread it with stainless steel wire)
8,The overall external wires and air pipes are all made of closed stainless steel tubes, which are neat and beautiful. There is a dust removal interface on the scale body
9,Parts in direct contact with the material are all made of stainless steel304 and polished
Parameter setting
મોડેલ | Net weight sensor type electronic scale (double scale) |
Feeding method | Gravity blanking |
સામગ્રી | Material contact surface304 stainless steel, frame protection painted steel |
હવા વપરાશ | ~200NL/min |
power | ~2.0kw |
Weighing capacity | ≥600 bags/hour |
Set weighing value | Net weight 25-50kg/bag |
માપન ચોકસાઈ | ±0.1% |
load cell | મેટ્ટેલર ટોલેડો |

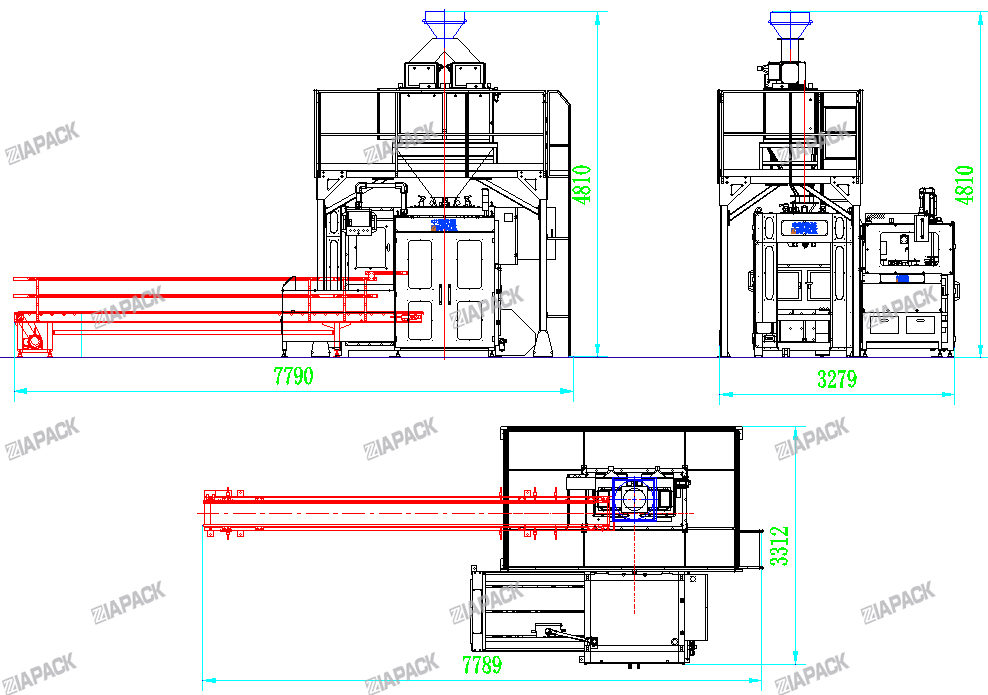

ZLZD750 AUTOMATIC BAGGING MACHINE
આ યુનિટમાં બેગ સ્ટોરેજ બિન, બેગ લેવા અને સૉર્ટ કરવા માટેનું ઉપકરણ, બેગ લોડિંગ રોબોટ, બેગ ક્લેમ્પિંગ અને અનલોડિંગ ડિવાઇસ, બેગ પુશિંગ ડિવાઇસ, બેગ માઉથ ગાઇડ ડિવાઇસ, વેક્યુમ સિસ્ટમ અને કંટ્રોલ સિસ્ટમનો સમાવેશ થાય છે.
વિશેષતા
૧). પેકેજિંગ બેગ માટે વ્યાપક અનુકૂલનક્ષમતા. પેકેજિંગ મશીન બેગ ચૂંટવાની પદ્ધતિ અપનાવે છે, એટલે કે, બેગને બેગ તૈયારી વેરહાઉસમાંથી લેવામાં આવે છે, બેગને કેન્દ્રમાં અને સ્થિત કરવામાં આવે છે, બેગ આગળ મોકલવામાં આવે છે, બેગનું મોં સ્થિત કરવામાં આવે છે, બેગ પહેલાથી ખોલવામાં આવે છે, બેગ લોડિંગ મેનિપ્યુલેટર બેગનું મોં ખોલવા માટે બેગના મોંમાં છરી દાખલ કરે છે, અને પછી બેગ ઉપર લઈ જાય છે.
૨). બેગ લોડિંગ મેનિપ્યુલેટર આર્મ સર્વો મોટર દ્વારા ચલાવવામાં આવે છે. મોટાભાગના અન્ય ઉત્પાદકોના ન્યુમેટિક મેનિપ્યુલેટરની તુલનામાં, તેમાં ઝડપી ગતિ, સરળ બેગ લોડિંગ, કોઈ અસર નહીં અને લાંબી સેવા જીવનના ફાયદા છે.
૩). બેગ ક્લેમ્પિંગ અને અનલોડિંગ ડિવાઇસ બેગ ક્લેમ્પિંગ ઓપનિંગ પર બે પ્રોક્સિમિટી સ્વીચોથી સજ્જ છે, જેનો ઉપયોગ પેકેજિંગ બેગ ઓપનિંગ સંપૂર્ણપણે ક્લેમ્પ્ડ છે કે નહીં અને બેગ ઓપનિંગ સંપૂર્ણપણે ખુલ્લું છે કે નહીં તે શોધવા માટે થાય છે. આ ખાતરી કરે છે કે પેકેજિંગ મશીન ખોટું ન ગણે અને જમીન પર સામગ્રી ન ફેલાવે, જે પેકેજિંગ મશીનની ઉપયોગ કાર્યક્ષમતા અને સ્થળ પરના સંચાલન વાતાવરણમાં સુધારો કરે છે.
૪). પેકેજિંગ મશીનનું પેરામીટર સેટિંગ ટચ સ્ક્રીન પર પૂર્ણ થાય છે. માનવ-મશીન મૈત્રીપૂર્ણ ટચ સ્ક્રીન ઓપરેશન ઇન્ટરફેસ સમગ્ર મશીનની ઓપરેટિંગ સ્થિતિનું વ્યાપકપણે નિરીક્ષણ કરી શકે છે. ઓટોમેટિક ફોલ્ટ ડિસ્પ્લે અને પ્રોસેસિંગ પદ્ધતિ પ્રોમ્પ્ટ જાળવણી કર્મચારીઓને ટૂંકા સમયમાં ફોલ્ટનો સામનો કરવાની મંજૂરી આપે છે.
૫) સોલેનોઇડ વાલ્વ જેવા વાયુયુક્ત ઘટકો અને ટચ સ્ક્રીન અને વજનના સાધનો જેવા ચોકસાઇ ઉત્પાદનો બધા સીલબંધ અને એક્સપોઝર વિના સ્થાપિત થયેલ છે. તે ધૂળવાળા વાતાવરણમાં ઉપયોગ માટે યોગ્ય છે, જે ખાતરી કરે છે કે સાધનો લાંબા સમય સુધી ચાલે છે.
૬) પેકેજિંગ મશીનના બધા નિયંત્રણ ઘટકો અને એક્ઝિક્યુટિવ ઘટકો પ્રખ્યાત સ્થાનિક અને વિદેશી કંપનીઓ દ્વારા બનાવવામાં આવે છે, જે સાધનોના લાંબા ગાળાના, સ્થિર અને વિશ્વસનીય સંચાલનને સુનિશ્ચિત કરે છે.
૭) તેમાં ફોલ્ટ સ્વ-નિદાન કાર્ય અને શ્રાવ્ય અને દ્રશ્ય એલાર્મ સિસ્ટમ છે જે ઉદ્ભવતી કોઈપણ સમસ્યાઓને તાત્કાલિક ચેતવણી આપે છે.
8) સરળ અને અનુકૂળ ઓપરેટિંગ પ્લેટફોર્મ ઓપરેટરો માટે મશીનનું સંચાલન અને દેખરેખ રાખવાનું સરળ બનાવે છે.
તકનીકી પરિમાણો:
પેકેજિંગ ક્ષમતા 600 બેગ/કલાક
નિયંત્રણ પદ્ધતિ પ્રોગ્રામેબલ કંટ્રોલર (PLC)
સામગ્રી: સામગ્રીના સંપર્ક સપાટી માટે 304 સ્ટેનલેસ સ્ટીલ, ફ્રેમ સુરક્ષા માટે 304 સ્ટેનલેસ સ્ટીલ, વગેરે.
Set weighing value Net weight 30kg/package
હવાનો વપરાશ ~ 600NL/મિનિટ
પાવર સપ્લાય એસી 380V 50Hz ~ 15kw
